CTNO

CTNO
300mm - 900mm
PIPE CUTTING & BEVELLING MACHINE
EXTERNAL CLAMPING
Request for quotation
CTNO

OPTIONS

the CTNO can be equipped with :
  • Tool holder for carbide cutting process
  • Concentric clamping
  • OD ovality carriage

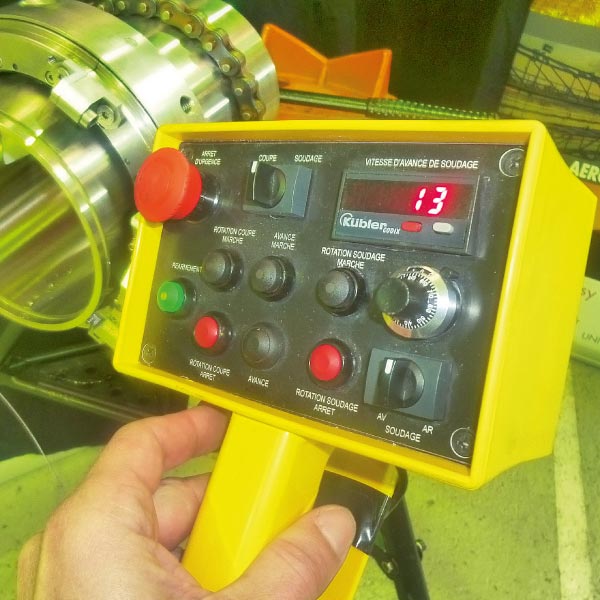

  • Remote control





Plastic welding

attachment

Enveloping

clamping jaws

Clutch drive system

Extension kit

diameter

Automatic

clamping

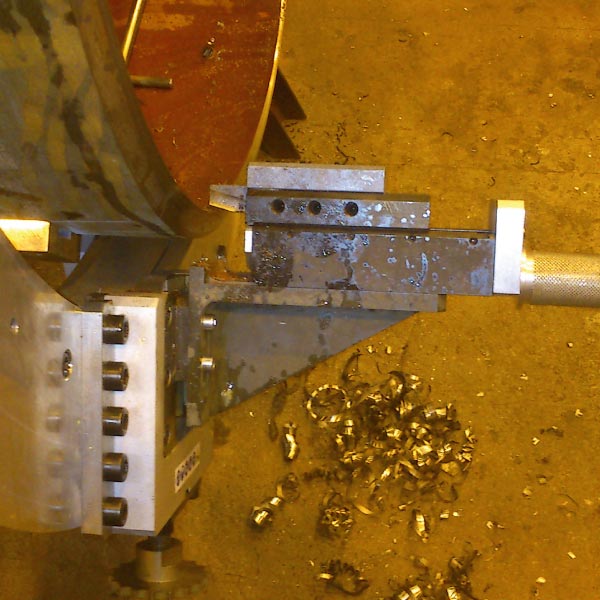

01CTNO - image 1

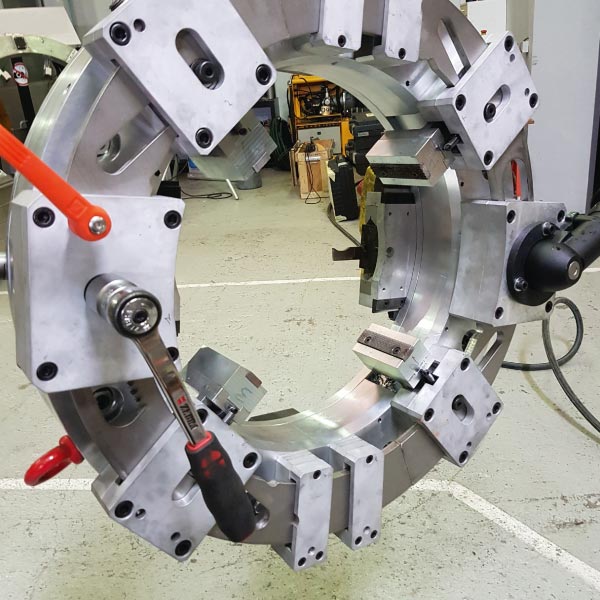

02CTNO - image 2

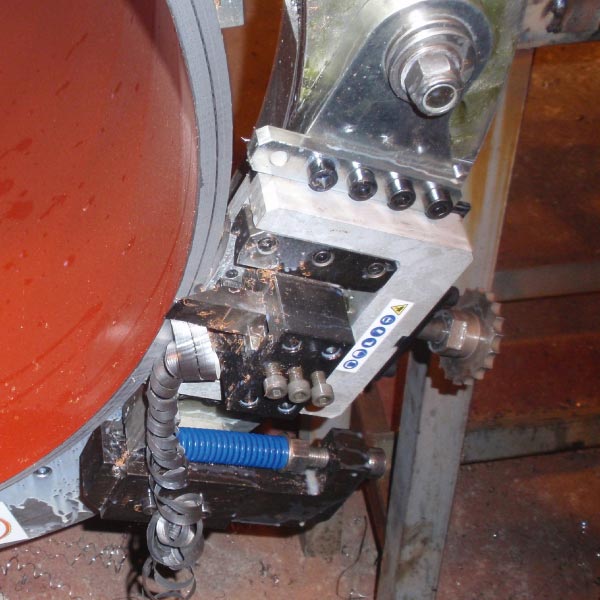

03CTNO - image 3
04CTNO - image 4
CTNO
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
PowerPower
WeightWeight
CTNO300
Clamping Range
219mm to 325mm
Machining Range
200mm to 325mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
150 kg
CTNO AUTOMATIC FEEDING
AND CLAMPING
Clamping RangeClamping Range
Wall ThicknessWall Thickness
PowerPower
WeightWeight
CTNO 406
Clamping Range
219mm to 406mm
Wall Thickness
5mm to 30mm
Power
3kw - 5kw
Weight
580kg
CTNO 610
Clamping Range
406mm to 610mm
Wall Thickness
5mm to 30mm
Power
5 - 10kw
Weight
980kg

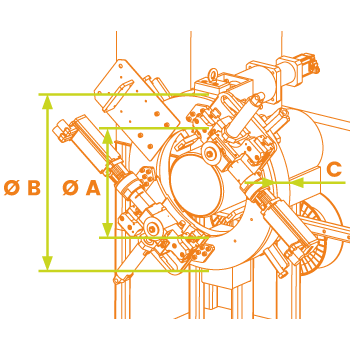

MACHINES
CTNO323
CTNO406
CTNO508
CTNO610
CTNO760
CTNO900
Ø RANGE 8" - 12" 10" - 16" 12" - 20" 16" - 24" 24" - 30" 28" - 36"
A mm 350 448 544 640 790 932
B mm 570 668 766 910 1010 1202
C mm 92 92 92 104 104 104
POWER 2hp 2hp 2hp 4hp 4hp 4hp
WEIGHT 65kg 78kg 95kg 130kg 160kg 180kg
Download catalog
