BM24

BM24
220mm ID - 610mm OD
BM Machine
INTERNAL CLAMPING
Request for quotation
BM24

OPTIONS

the BM24 can be equipped with :
  • Ovality tracker
  • Reduced shaft



Automatic clamping

Pedal start

Carbide insert

Enveloping jaws

Elbow shaft

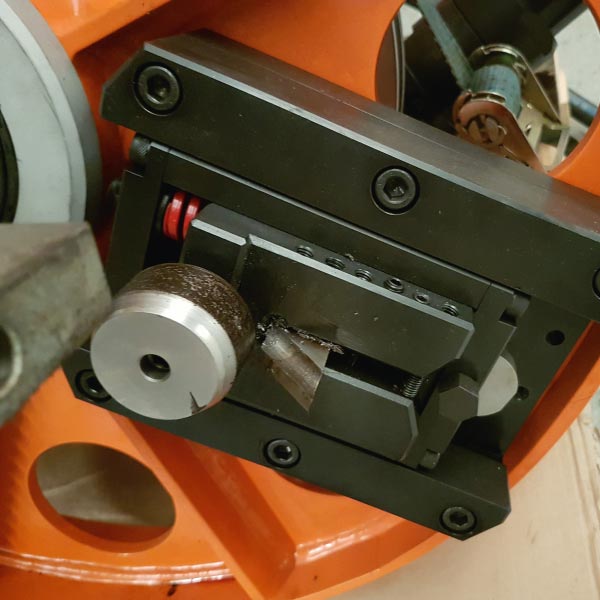

01BM24 - image 1

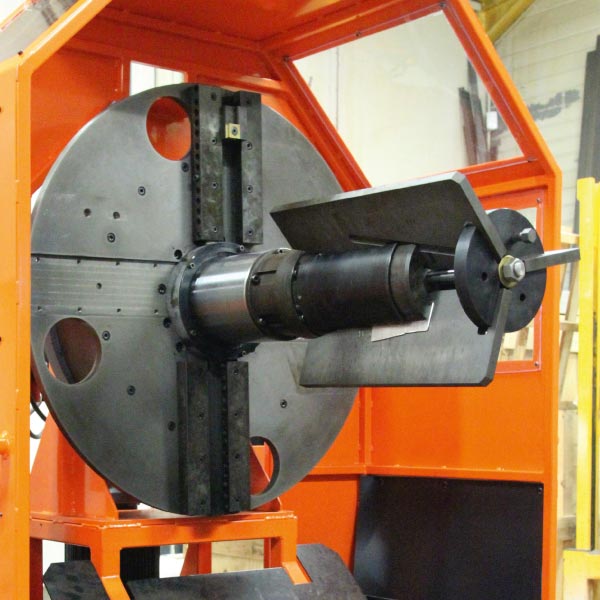

02BM24 - image 2

Features

BM24 E

weight: 420kg
  • Very fast set up
  • Quick tool holder adjustment
  • Exceptional 8 sided insert tool bit
  • 4 legged stand
BM24
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
BM24
Clamping Range
220mm ID - 600mm ID
Machining Range
220mm ID - 610mm OD
Wall Thickness
2mm to 25mm
Stroke
100mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
BM24 E
Motorization
Electric 3 phases
Power
415V / 50hertz
Specifications
Speed Variator
Weight
420kg
BM24 E
Power
415V / 60hertz
BM24 H
Motorization
Hydraulic
Power
8HP / 60Bars
Specifications
30L/min
Weight
380kg
