BM14

BM14
78mm ID - 355mm OD
BM Machine
INTERNAL CLAMPING
Request for quotation
BM14

OPTIONS

the BM14 can be equipped with :
  • Elbow shaft
  • Ovality tracker

Reduced shaft

Automatic clamping

Pedal start



Carbide insert

Enveloping jaws







01BM14 - image 1

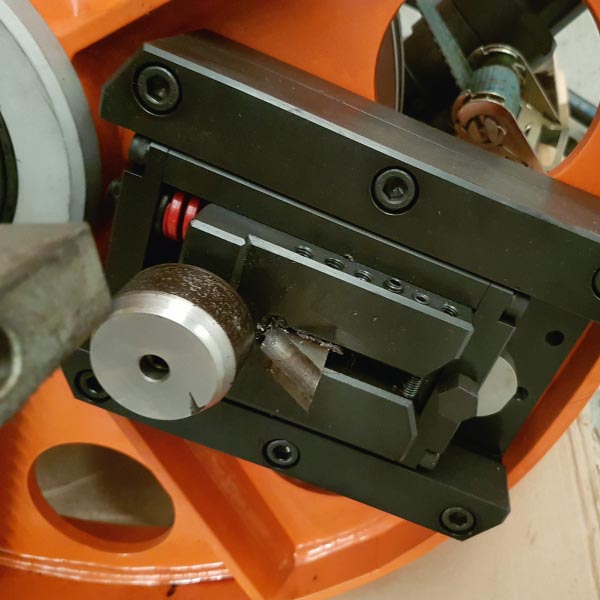

02BM14 - image 2

Features

BM14

weight: 105kg
  • Very fast set up
  • Quick tool holder adjustment
  • Exceptional 8 sided insert tool bit
  • 4 legged stand
BM14
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
BM14
Clamping Range
78mm ID - 350mm ID
Machining Range
78mm ID - 355mm OD
Wall Thickness
2mm to 25mm
Stroke
80mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
BM14 E
Motorization
Electric 3 phases
Power
415V / 50hertz
Specifications
Speed Variator
Weight
105kg
BM14 E
Power
415V / 60hertz
BM14 H
Motorization
Hydraulic
Power
4HP / 60Bars
Specifications
30L/min
Weight
70kg
BM14 P
Motorization
Pneumatic
Power
3HP / 6Bars (90PSI)
Specifications
2000L/min
Weight
60kg
