DE20-63

DE20-63
20mm OD - 63mm OD
Pipe Facing Machine
EXTERNAL CLAMPING
Request for quotation
DE20-63

OPTIONS

THE DE SERIES CAN COVER FROM 3MM TO 63 MM WITH 2 HEADS AND 1 MOTOR.


  • Right angle drive
  • Bevelling carbide insert
  • Motor 220V/110V

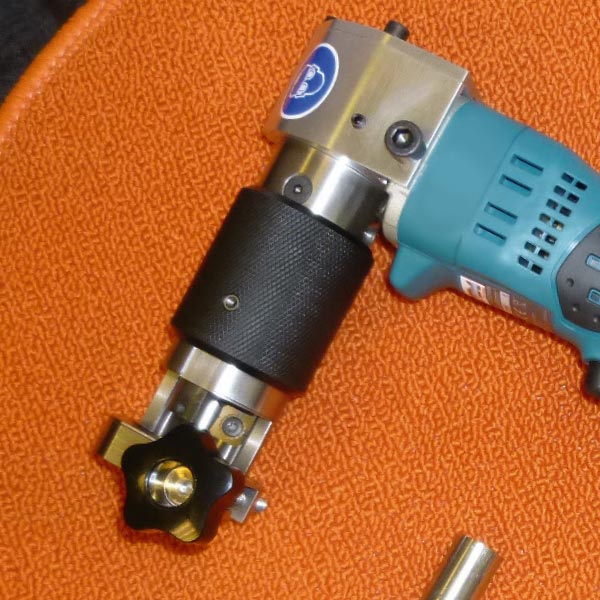

01DE20-63 - image 1

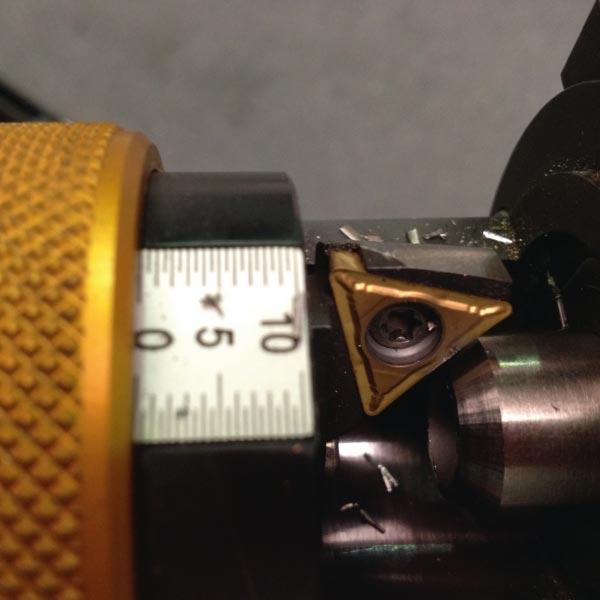

02DE20-63 - image 2

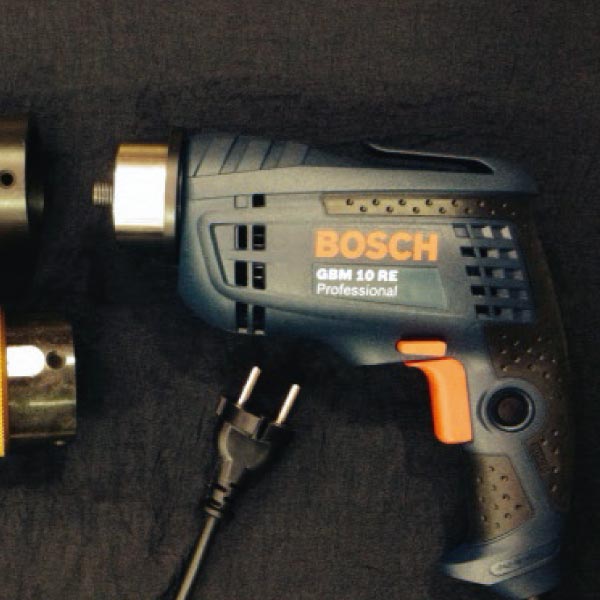

03DE20-63 - image 3

Features

  • 1 collar per diameter (carbon or stainless)
  • 0-400rpm - 2 speeds
  • Chip protection
  • 4 sided carbide Insert
  • Chip deflector
  • 2 batteries
  • 1 charger
  • 1 plastic box
DE20-63
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
DE20-63
Clamping Range
20mm OD - 63mm OD
Machining Range
20mm OD - 63mm OD
Wall Thickness
1mm to 3mm
Stroke
20mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
DE20-63 P
Motorization
Pneumatic
Power
1HP / 6Bars (90PSI)
Specifications
1000L/min (35 cfm)
Weight
4.5kg
DE20-63 E
Motorization
Electric
Power
400W 230V / 50hertz
Specifications
Speed Variator
Weight
4.5kg
DE20-63 E
Power
115V / 50hertz
DE20-63 E
Power
115V / 60hertz
DE20-63 B
Motorization
Battery
Power
18V
Specifications
Charger + 2 batteries
Weight
4.5kg
