| MACHINE |  Clamping Range |  Machining Range |  Wall Thickness |  Stroke |
|---|

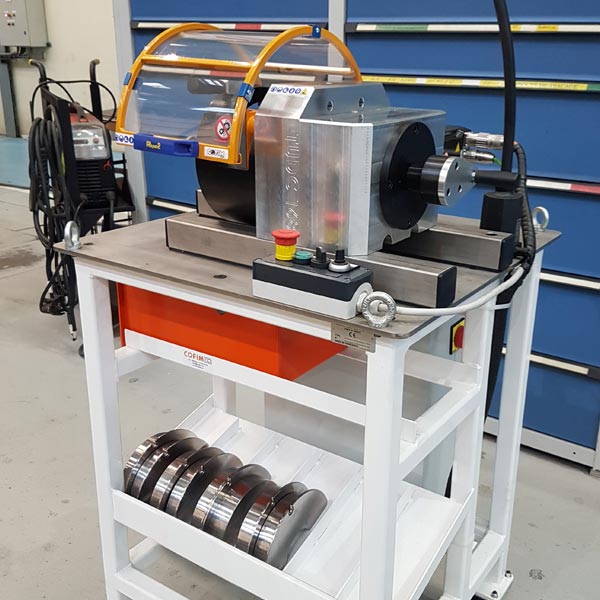

| TUDC168 | Clamping Range 63mm OD - 168mm OD | Machining Range 50mm OD - 168mm OD | Wall Thickness 1mm to 4mm | Stroke 40mm |
| TYPE |  Motorization |  Power |  Specifications |  Weight |
|---|
| TUDC168 P | Motorization Pneumatic | Power 1HP / 6Bars (90PSI) | Specifications 1000L/min (35 cfm) | Weight 65 kg |
| TUDC 168 E | Motorization Electric | Power 1400W 230V / 50hertz | Specifications Speed Variator | Weight 65 kg |
| TUDC 168 E | Motorization Electric | Power 115V / 50hertz | Specifications Speed Variator | Weight 65 kg |
| TUDC 168 E | Motorization Electric | Power 115V / 60hertz | Specifications Speed Variator | Weight 65 kg |
