TU12

TU12
130mm ID - 610mm OD
Pipe Bevelling Machine
INTERNAL CLAMPING
Request for quotation
TU12

OPTIONS

the TU12 can be equipped with :
  • ID ovality tracker
  • Single point mechanical carriage by template reproduction from 400mm ID up to 900mm OD with standard carbide insert

Single point carriage With adjustable angle from 200mm ID up to 900mm OD

Right angle drive



Enveloping jaws

Turning plate cover



Automatic clamping

TU12 H with Hydraulic Power Unit of type Beluga

Carbide insert

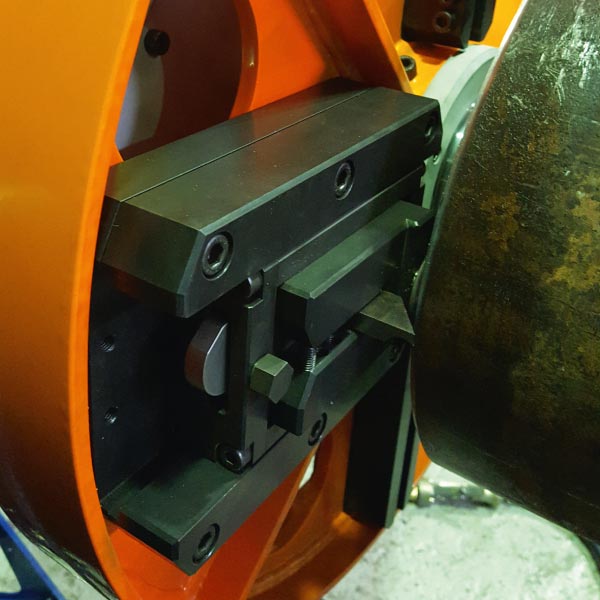

01TU12 - image 1

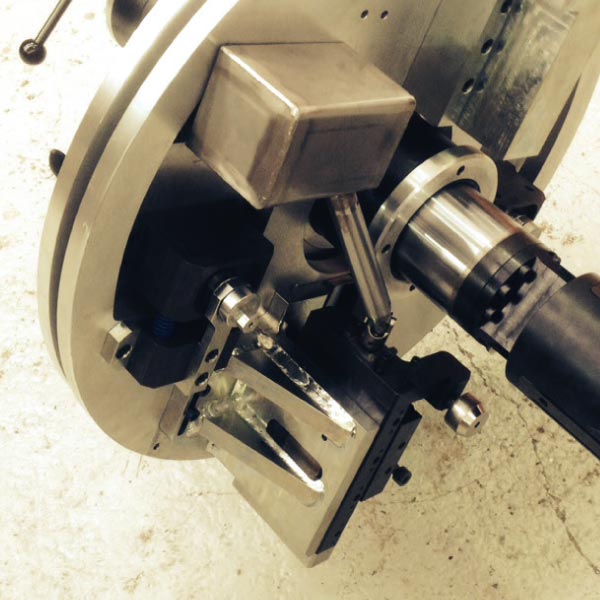

02TU12 - image 2

Feature

WEIGHT TU6P: 120 KG

TU12
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
TU12
Clamping Range
130mm ID - 600mm ID
Machining Range
130mm ID - 610mm OD
Wall Thickness
4mm to 25mm
Stroke
100mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
TU12 P
Motorization
2 x Pneumatic
Power
3HP / 6Bars (90PSI)
Specifications
4000L/min
Weight
120kg
TU12 H
Motorization
2 x Hydraulic
Power
4HP / 60Bars
Specifications
60L/min
Weight
120kg
TU12 E
Motorization
1 x Electric
Power
1400W 230V / 50hertz
Specifications
Speed Variator
Weight
120kg
TU12 E
Power
1400W 115V / 50hertz
TU12 E
Power
1400W 115V / 60hertz
