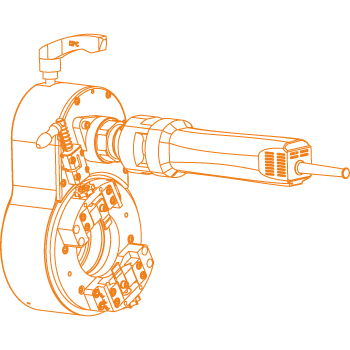

CTNO

CTNO
25mm - 300mm
PIPE CUTTING & BEVELLING MACHINE
EXTERNAL CLAMPING
Request for quotation
CTNO

OPTIONS

the CTNO can be equipped with :
  • Right angle drive
  • Enveloping stainless steel clamping jaws



Adjustable table level from 168mm ID up to 610mm OD



CTNO machine range performs pipe cuts and bevels, also features a non-opening frame. Although they are portable, they are mostly intended for workshops.

CTNO machines enable cut and bevel in the same operation. Outside clamping is concentric and needs no particular setting.

The Human-Machine Interface gives a total control of the CTNO features: clamp/release, rotation, tools stroke, etc.

The drive is generally asynchronous or brushless electric motors.

The smaller models of CTNO (25mm to 200mm) can be equipped with electric or battery drives. They ensure the cut to length and preparation of tubes.

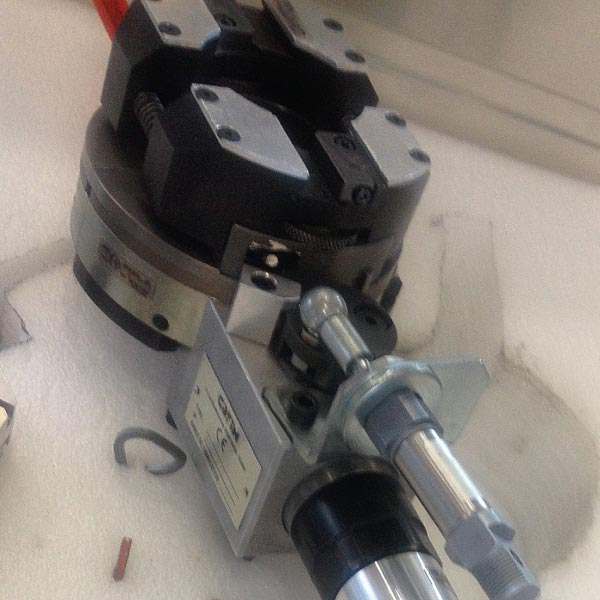

01CTNO - image 1

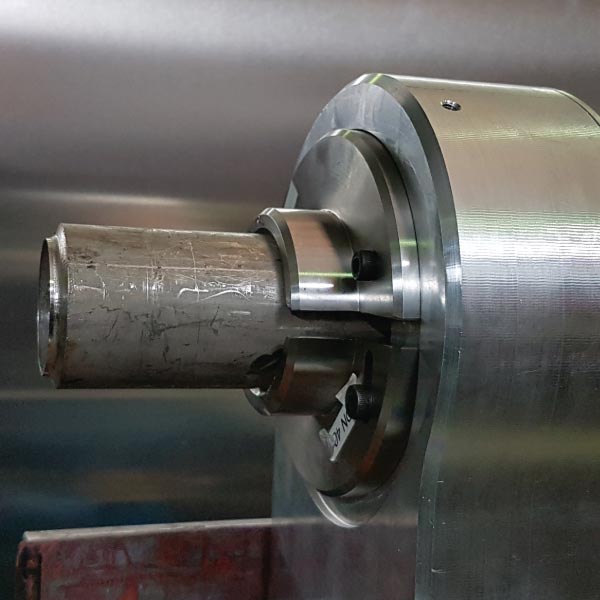

02CTNO - image 2
CTNO
MACHINE
Clamping RangeClamping Range
Wall ThicknessWall Thickness
PowerPower
WeightWeight
CTNO 40
Clamping Range
25mm to 45mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
12.5kg
CTNO 65
Clamping Range
50mm to 65mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
20kg
CTNO 100
Clamping Range
80mm to 100mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
16kg
CTNO 150
Clamping Range
125mm to 150mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
16kg
CTNO 200
Clamping Range
150mm to 200mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
24kg
CTNO 250
Clamping Range
225mm to 250mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
22kg
CTNO 300
Clamping Range
250mm to 300mm
Wall Thickness
0.5mm to 6mm
Power
1200W
Weight
24kg
