TUDC 114

TUDC 114
32mm OD - 114mm OD
Pipe Facing Machine
EXTERNAL CLAMPING
Request for quotation
TUDC 114

OPTIONS

the TUDC 114 can be equipped with :
  • Work station
  • Specific tool holder with micrometric advance ajustment

LED light

Automatic feeding

Feed limit stops

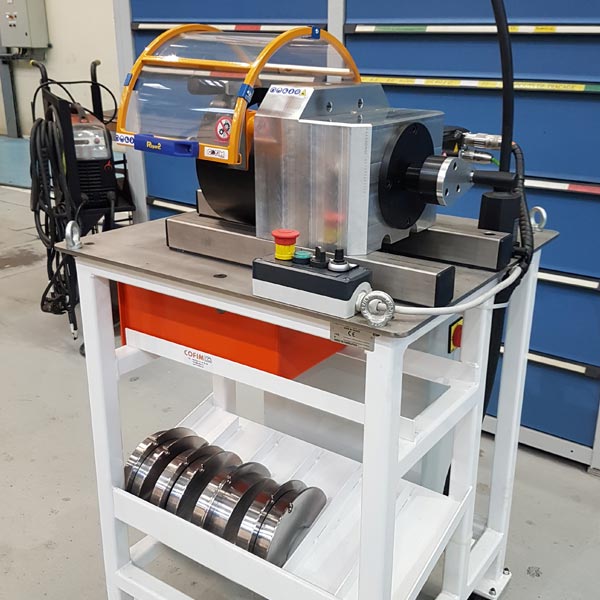

01TUDC114 - image 1

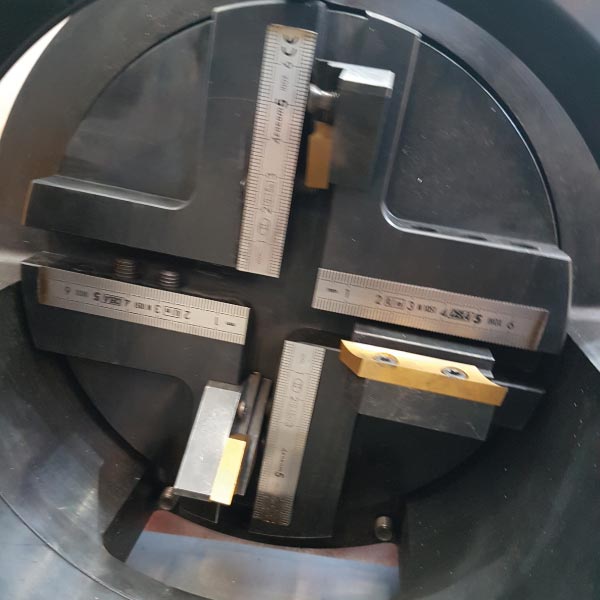

02TUDC114 - image 2
TUDC 114
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
TUDC 114
Clamping Range
32mm OD - 114mm OD
Machining Range
32mm OD - 114mm OD
Wall Thickness
1mm to 4mm
Stroke
40mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
TUDC114 P
Motorization
Pneumatic
Power
1HP / 6Bars (90PSI)
Specifications
1000L/min (35 cfm)
Weight
8kg
TUDC114 E
Motorization
Electric
Power
1400W 230V / 50hertz
Specifications
Speed Variator
Weight
8.5 kg
TUDC114 E
Power
1400W 115V / 50hertz
TUDC114 E
Power
1400W 115V / 60hertz
