TU3D

TU3D
4mm ID - 43mm OD
Pipe Facing Machine
EXTERNAL CLAMPING
Request for quotation
TU3D

OPTIONS

the TU3D can be equipped with :
  • Specific tool holder with carbide insert
  • Motor in line
  • Specific clamping

Short clamping jead

Milling head

01TU3D - image 1

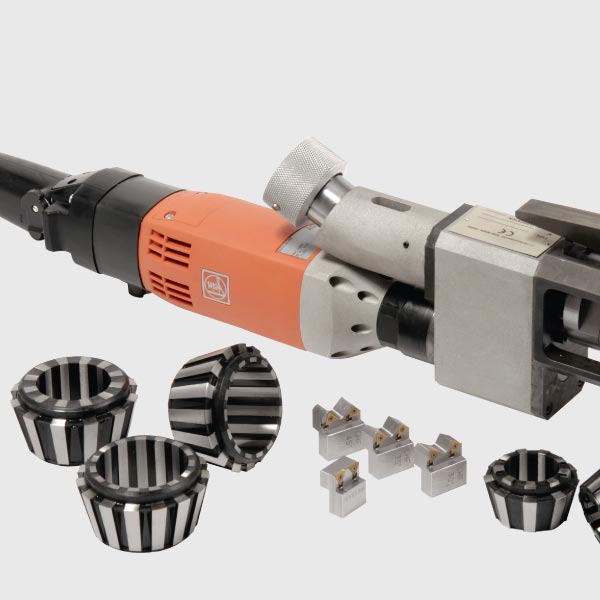

02TU3D - image 2
03TU3D - image 3
TU3D
MACHINE
Clamping RangeClamping Range
Machining RangeMachining Range
Wall ThicknessWall Thickness
StrokeStroke
TU3D
Clamping Range
7mm ID - 49mm ID
Machining Range
4mm ID - 43mm OD
Wall Thickness
5mm
Stroke
25mm
TYPE
MotorizationMotorization
PowerPower
SpecificationsSpecifications
WeightWeight
TU3D P
Motorization
Pneumatic / 1HP
Power
6Bars (90PSI)
Specifications
1000L/min (35 cfm)
Weight
5.5kg
TU3D E
Motorization
Electric / 1400W
Power
230V / 50hertz
Specifications
Speed Variator
Weight
7.5kg
TU3D E
Power
115V / 50hertz
TU3D E
Power
115V / 60hertz
TU3D B
Motorization
Battery
Power
18V
Specifications
Charger + 2 batteries
Weight
7.5kg
